MakerLab Reference: ESP32-C3 - The RISC-V Wi-Fi and Bluetooth LE Microcontroller

Explore the ESP32-C3, a versatile and cost-effective microcontroller featuring RISC-V architecture, Wi-Fi, and Bluetooth LE, ideal for IoT projects.

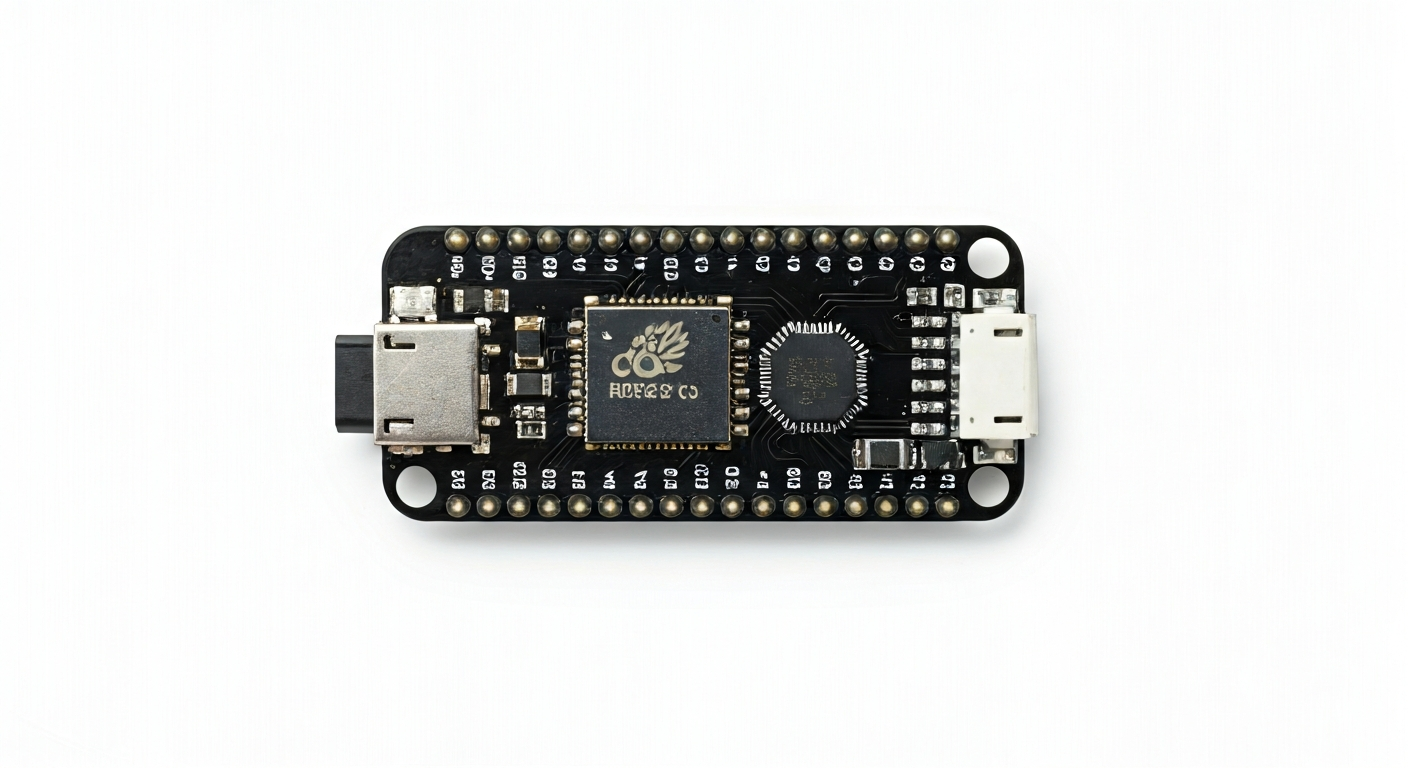

ESP32-C3

The ESP32-C3 is a significant addition to Espressif's popular ESP32 family, distinguishing itself by adopting the 32-bit RISC-V instruction set architecture (ISA) instead of the Tensilica Xtensa cores found in earlier ESP32 models. Released around 2020, it was designed to offer a compelling blend of performance, low power consumption, and robust connectivity at an attractive price point. This makes it an excellent choice for makers, students, and engineers looking to develop a wide range of connected embedded systems.

At the heart of the ESP32-C3 is the ESP32-C3FN4 chip, which integrates a single-core 32-bit RISC-V processor capable of running at up to 160 MHz. It features built-in Wi-Fi 4 (802.11b/g/n) and Bluetooth 5 (LE) connectivity, making it perfectly suited for Internet of Things (IoT) applications. The chip also includes a variety of peripherals such as GPIOs, ADCs, SPI, I2C, UART, and timers, along with security features like a hardware cryptographic accelerator.

Compared to its predecessors, the ESP32-C3 offers a more modern architecture with RISC-V, which is gaining traction in the embedded space due to its open-standard nature and potential for customization. While it has a single core compared to some dual-core ESP32 variants, its efficient design and integrated peripherals provide ample power for many common IoT tasks. The ESP32-C3 is particularly appealing for projects requiring wireless connectivity, low power consumption, and a straightforward development experience, especially when using platforms like the Arduino IDE or MicroPython.

Watch

Related video, embedded from YouTube.

Specifications

Microcontroller / SoCESP32-C3FN4
Architecture32-bit RISC-V single-core processor
Clock speedUp to 160 MHz
Flash / Storage4 MB (internal, typically)
RAM / SRAM400 KB (internal)
Operating voltage3.0V - 3.6V
Digital I/O pins22 (configurable)
Analog / ADC2x 12-bit SAR ADCs (up to 6 channels)
PWMYes (up to 6 channels)
ConnectivityWi-Fi 802.11b/g/n (2.4 GHz), Bluetooth 5 (LE)
USBUSB-to-UART bridge (for programming/serial)
Power inputUSB (5V) or external 3.0V-3.6V VIN
DimensionsTypically 25.5mm x 17.5mm (dev board dependent)

Pinout & pin functions

PinFunction
3V3Power output (regulated 3.3V)
GNDGround
ENChip enable (active high)
GPIO1UART0 TXD, general I/O
GPIO2General I/O
GPIO3UART0 RXD, general I/O
GPIO4General I/O
GPIO5General I/O, strapping pin (boot mode)
GPIO6SPI0 CS, general I/O
GPIO7SPI0 MOSI, general I/O
GPIO8SPI0 MISO, general I/O
GPIO9SPI0 SCK, general I/O
GPIO10SPI0 HD, general I/O
GPIO18General I/O
GPIO19General I/O
GPIO20General I/O
GPIO21I2C SDA, general I/O
GPIO22I2C SCL, general I/O
GPIO23General I/O
GPIO24General I/O
GPIO25ADC1_CH0, general I/O
GPIO26ADC1_CH1, general I/O
GPIO27ADC1_CH2, general I/O
GPIO28ADC1_CH3, general I/O
GPIO29ADC1_CH4, general I/O
GPIO30ADC1_CH5, general I/O
GPIO31General I/O
USB D-USB data minus
USB D+USB data plus

Wiring & circuit basics

The ESP32-C3 operates at 3.3V logic levels. Connecting 5V devices directly to its GPIO pins can cause damage. If you need to interface with 5V components, use a logic level shifter or a voltage divider for inputs. Powering the board is typically done via the USB port, which supplies 5V. The onboard voltage regulator steps this down to the 3.3V required by the ESP32-C3. You can also power the board through the 3V3 pin (regulated 3.3V) or the VIN pin (unregulated, typically 5V, which is then regulated onboard). Ensure your power supply can provide sufficient current, especially when Wi-Fi or Bluetooth are active; a minimum of 500mA is recommended for USB power.

When connecting external components, always observe the logic level requirements. For a simple LED, connect it to a GPIO pin through a current-limiting resistor (e.g., 220-330 ohms) to protect both the LED and the ESP32-C3. The other end of the LED connects to GND. For I2C communication with sensors like the BME280, connect the sensor's SDA pin to the ESP32-C3's GPIO21 (SDA) and the sensor's SCL pin to GPIO22 (SCL). Remember to also connect the sensor's VCC to 3.3V and GND to the ESP32-C3's GND.

For more complex peripherals or motors, ensure they are powered by an external supply and that their ground is connected to the ESP32-C3's ground to establish a common reference. Avoid powering high-current devices directly from the ESP32-C3's 3.3V pin. Always consult the specific development board's documentation for exact pin mappings and power delivery capabilities.

Programming & getting started

The ESP32-C3 is well-supported by several popular development environments. For Arduino users, you can add ESP32 board support to the Arduino IDE via the Board Manager, selecting the ESP32-C3 Dev Module. For MicroPython and CircuitPython, official builds are available, allowing you to program the ESP32-C3 using Python. The official Espressif IoT Development Framework (ESP-IDF) provides the most comprehensive control and performance, suitable for professional embedded development. To flash your first program, connect the ESP32-C3 to your computer via USB. For Arduino IDE, select the correct board and COM port, then click Upload. For MicroPython/CircuitPython, you'll typically use a tool like `ampy` or drag-and-drop firmware onto the device when it appears as a USB drive.

A common first project is blinking an LED. Connect an LED (with a resistor) to a GPIO pin like GPIO2. In the Arduino IDE, use the `pinMode()` and `digitalWrite()` functions within `setup()` and `loop()`. For MicroPython, you'd import the `machine` module, configure the pin as an output, and use `pin.on()` and `pin.off()` methods. This simple exercise helps verify your toolchain setup and basic hardware connectivity.

Project ideas

Wi-Fi Connected ThermometerMeasure temperature using an external sensor (e.g., DS18B20 or BME280) and send readings to a web server or MQTT broker over Wi-Fi. Uses GPIO for sensor and Wi-Fi for connectivity. Learns about sensor interfacing and network communication.
Bluetooth LE BeaconBroadcast sensor data (e.g., battery level, temperature) using Bluetooth Low Energy. Ideal for low-power tracking or presence detection. Uses Bluetooth LE stack. Learns about BLE advertising and low-power operation.
Smart Home Light ControllerControl an LED strip or relay connected to a GPIO pin via a web interface hosted on the ESP32-C3 or through a mobile app using MQTT. Uses Wi-Fi, GPIO, and potentially a web server or MQTT client. Learns about web servers, MQTT, and controlling actuators.
Simple Web ServerHost a basic HTML page directly from the ESP32-C3, displaying sensor data or status information. Uses Wi-Fi and GPIO. Learns about embedded web servers and handling HTTP requests.
OTA Updates ReceiverImplement Over-The-Air update functionality, allowing firmware to be updated wirelessly via Wi-Fi. Uses Wi-Fi and ESP-IDF or Arduino libraries for OTA. Learns about firmware management and network protocols.

Buying tips & gotchas

When purchasing an ESP32-C3 development board, look for reputable manufacturers like Espressif or well-known distributors. Be aware that many generic boards exist; while often cheaper, their quality and documentation can vary. Ensure the board has a USB-to-UART chip (like CP2102 or CH340) for easy programming. Common pitfalls include accidentally connecting 5V logic to the 3.3V GPIO pins, insufficient power supply current, and incorrect Wi-Fi/Bluetooth credential handling. Accessories like breadboards, jumper wires, sensors (temperature, humidity, motion), and LEDs are essential for prototyping.
